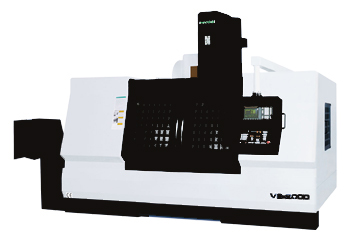

VB-1000 / VB-1200 / VB-1400 / VB-1600 / VB-2000
機台特性:
Machine Characteristics:*Four guide ways on base for even distribution of the heavy loading.
*All 3 axes quide ways are coated with Turcite-B.
*Supported by superior bearings and ball screws, which are pre-loaded and pre-tensioned to generate best axial as well as radial force distibutions to provide high accuracy.
產品規格表
MACHINE
SPECIFICATION
|
MODEL |
ITEM |
VB-1000 |
VB-1200 |
||
|
TABLE SIZE |
mm |
1200x510 |
1300x510 |
||
|
MAX. TABLE LOAD |
kg |
800 |
900 |
||
|
X/Y/Z AXIS TRAVEL |
mm |
1000/610/610 |
1200/610/610 |
||
|
SPINDLE MOTOR |
kw |
15/18.5 |
|||
|
SPINDLE TAPER |
|
BT-40 |
|||
|
SPINDLE SPEED |
rpm |
8000 - BELT DRIVE |
|||
|
RAPID TRAVERSE RATES (X/Y/Z) |
m/min |
20/20/15 |
|||
|
DISC-TYPE & TOOL STORAGE CAPACITY |
|
ARMLESS / 16T |
|||
|
GUIDEWAYS |
|
HARD RAIL |
|||
|
MACHINE WEIGHT (N.W.) |
kg |
7100 |
7500 |
||
|
MODEL |
ITEM |
VB-1400 |
VB-1600 |
VB-2000 |
|
|
TABLE SIZE |
mm |
1500x650 |
1700x800 |
2100x850 |
|
|
MAX. TABLE LOAD |
kg |
1600 |
2000 |
3000 |
|
|
X/Y/Z AXIS TRAVEL |
mm |
1400/760/700 |
1600/810/700 |
2000/810/700 |
|
|
SPINDLE MOTOR |
kw |
15/18.5 |
15/18.5 |
||
|
SPINDLE TAPER |
|
BT-50 |
|||
|
SPINDLE SPEED |
rpm |
8000 - BELT DRIVE |
|||
|
RAPID TRAVERSE RATES (X/Y/Z) |
m/min |
20/20/15 |
15/15/15 |
||
|
DISC-TYPE & TOOL STORAGE CAPACITY |
|
ARMLESS / 20T |
|||
|
GUIDEWAYS |
|
HARD RAIL |
|||
|
MACHINE WEIGHT (N.W.) |
kg |
11000 |
12500 |
17200 |
|
STANDARD
ACCESSORIES
|
Tool box |
Guideway cover |
Leveling blocks & bolts |
|
3 color lamp |
Screw conveyor |
Armless type ATC |
|
Work light |
Cutting air blast |
Spindle cooling system |
|
Chip Enclosure |
Auto lube system |
Belt type spindle 8000rpm |
|
Coolant system |
Movable electronic handwheel |
Mechanical electrical & operating manual |
