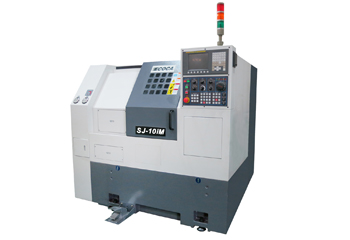

SJ-10iM
機台特性:
* 45°slant bed to fit in smallest of floor space while offering excellent chip evacuation capacity.
* High rigid and accuracy for X & Y linear way.
* New design for A2-4 spindle box structure equip CR30 collet chuck, with C-Axis (BZI sensor).
* Gang-tool system, Utilizing the full rapid traverse speed of the two linear guiders.
產品規格表
MACHINE SPECIFICATION
|
MODEL |
ITEM |
SJ-10i |
SJ-10iM |
|
SWING OVER BED |
mm |
360 |
|
|
SWING OVER CROSS SLIDE |
mm |
160 |
|
|
MAX. TURNING DIA. |
mm |
100 |
|
|
MAX. TURNING LENGTH |
mm |
330 |
|
|
CHUCK SIZE |
inch |
5 |
|
|
SPINDLE DRIVE MOTOR |
kw |
7.5/11 |
|
|
SPINDLE SPEED RANGE |
rpm |
6000 |
|
|
MILLLING SPEED RANGE |
rpm |
|
4000 |
|
NO. OF TOOL STATIONS |
|
6 |
|
|
GUIDEWAYS |
|
LINEAR |
|
|
MACHINE WEIGHT (N.W.) |
Kg. |
3000 |
|
STANDARD ACCESSORIES
|
3-jaw hydraulic chuck |
Leveling pads |
O.D. tool holder |
|
Hydraulic tailstock |
Soft jaw |
Facing tool holder |
|
Hydraulic system |
Live center |
Boring bar holder & sleeves |
|
Coolant system |
Foot switch for chuck clamp |
Drill sleeves |
|
Auto lubrication system |
MPG hand wheel |
Operation & maintenance manuals |
|
Work light equipment |
Tool box |
|
|
Heat exchanger |
Morse taper sleeve |
|
|
※Tool holders & sleeves are optional for living tool. |
||
