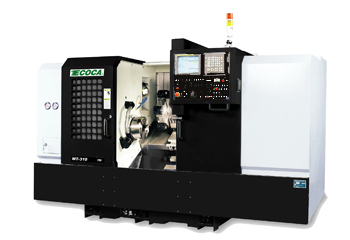

MT-310 / MT-312
機台特性:
* 600mm swing with Z travel up to 1 meter, providing flexibility in turning length.
* Servo turret or hydraulic turret is offered for users as an alternative choice. Large disc. Is equipped for easy tool set up.
* 30 degree slant bed design for easy operation and easy chip removal.
產品規格表
MACHINE SPECIFICATION
|
MODEL |
ITEM |
MT-310 |
MT-310MC |
MT-312 |
MT-312MC |
|
SWING OVER BED |
mm |
600 |
|||
|
SWING OVER CROSS SLIDE |
mm |
400 |
|||
|
MAX. TURNING DIA. |
mm |
450 |
330 |
450 |
330 |
|
MAX. TURNING LENGTH |
mm |
480/730/980 |
470/720/970 |
480/730/980 |
470/720/970 |
|
CHUCK SIZE |
inch |
10 |
12 |
||
|
SPINDLE DRIVE MOTOR |
kw |
15/18.5 |
|||
|
SPINDLE SPEED RANGE |
rpm |
4200 |
3200 |
||
|
MILLLING SPEED RANGE |
rpm |
|
5000 |
|
5000 |
|
NO. OF TOOL STATIONS |
|
12 |
|||
|
GUIDEWAYS |
|
HARD RAIL |
|||
|
MACHINE WEIGHT (N.W.) |
kg. |
5100/5500/6000 |
|||
STANDARD ACCESSORIES
|
3-jaw hydraulic chuck |
Leveling pads |
O.D. tool holder |
|
Hydraulic tailstock |
Soft jaw |
Facing tool holder |
|
Hydraulic system |
Live center |
Boring bar holder & sleeves |
|
Coolant system |
Foot switch for chuck clamp |
Drill sleeves |
|
Auto lubrication system |
MPG hand wheel |
Operation & maintenance manuals |
|
Work light equipment |
Tool box |
|
|
Heat exchanger |
Morse taper sleeve |
|
|
※Tool holders & sleeves are optional for living tool. |
||
