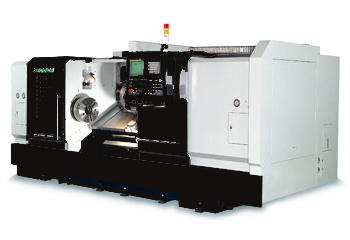

MT-412 / MT-415
機台特性:
* 690mm swing with 3-meter turning length. An economic choice for big turning parts.
* Servo turret or hydraulic turret is offered for users as an alternative choice. Large disc. Is equipped for easy tool set up.
* 30 degree slant bed design for easy operation and easy chip removal.
產品規格表
MACHINE SPECIFICATION
|
MODEL |
ITEM |
MT-412 |
MT-412MC |
MT-415 |
MT-415MC |
|
SWING OVER BED |
mm |
690 |
|||
|
SWING OVER CROSS SLIDE |
mm |
480 |
|||
|
MAX. TURNING DIA. |
mm |
510 |
440 |
510 |
440 |
|
MAX. TURNING LENGTH |
mm |
730/1000/1500/2000/2980 |
|||
|
CHUCK SIZE |
inch |
12 |
15 |
||
|
SPINDLE DRIVE MOTOR |
kw |
18.5/22 |
|||
|
SPINDLE SPEED RANGE |
rpm |
3200 |
2500 |
||
|
MILLLING SPEED RANGE |
rpm |
|
3200 |
|
3200 |
|
NO. OF TOOL STATIONS |
|
12 |
|||
|
GUIDEWAYS |
|
HARD RAIL |
|||
|
MACHINE WEIGHT (N.W.) |
kg. |
7400/7900/84000/9000/9500 |
|||
STANDARD ACCESSORIES
|
3-jaw hydraulic chuck |
Leveling pads |
O.D. tool holder |
|
Hydraulic tailstock |
Soft jaw |
Facing tool holder |
|
Hydraulic system |
Live center |
Boring bar holder & sleeves |
|
Coolant system |
Foot switch for chuck clamp |
Drill sleeves |
|
Auto lubrication system |
MPG hand wheel |
Operation & maintenance manuals |
|
Work light equipment |
Tool box |
|
|
Heat exchanger |
Morse taper sleeve |
|
|
※Tool holders & sleeves are optional for living tool. |
||
