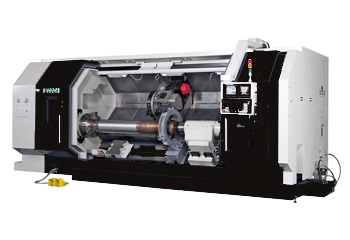

MT-520
機台特性:
* 1 meter swing with 5 meter cutting length meets the trend for bigger and longer turning demands.
* 45 degree slant bed provides good chip disposal function necessary for big turning jobs.
* High-rigidity turret with sturdy programmable tailstock and steady rest (optional) provides structure with massive rigidity.
產品規格表
MACHINE SPECIFICATION
|
MODEL |
ITEM |
MT-520 |
MT-520MC |
|
SWING OVER BED |
mm |
1000 |
|
|
SWING OVER CROSS SLIDE |
mm |
700 |
|
|
MAX. TURNING DIA. |
mm |
780 |
|
|
MAX. TURNING LENGTH |
mm |
3100/4100/5100 |
|
|
CHUCK SIZE |
inch |
20 |
|
|
SPINDLE DRIVE MOTOR |
kw |
37/45 |
|
|
SPINDLE SPEED RANGE |
rpm |
124~496(L) / 1800(H) |
|
|
MILLLING SPEED RANGE |
rpm |
|
3000 |
|
NO. OF TOOL STATIONS |
|
12 |
|
|
GUIDEWAYS |
|
Box way/45 |
|
|
MACHINE WEIGHT (N.W.) |
Kg. |
18500/20500/22500 |
|
STANDARD ACCESSORIES
|
3-jaw hydraulic chuck |
Soft jaw |
Hydraulic tailstock |
|
Live center |
O.D. tool holder |
Facing tool holder |
|
Hydraulic system |
Morse taper sleeve |
Boring bar holder & sleeves |
|
Coolant system |
Foot switch for chuck clamp |
Drill sleeves |
|
Auto lubrication system |
MPG hand wheel |
Operation & maintenance manuals |
|
Work light |
Tool box |
|
|
Heat exchanger |
|
|
|
※Tool holders & sleeves are optional for living tool. |
||
